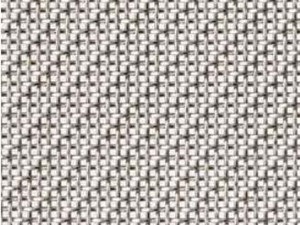

Twill Weave Stainless Steel Wire Mesh

Twill weave: Each warp wire passes across in the top and bottom of each two weft wire, each weft wire passes across each two warp wire up and down.

Stainless Steel Wire Mesh Material SS Wire Mesh available 304 304L 316 316L etc

twill weave mesh specification

mesh	wire		aperture		open area	weight
mesh	mm	inch	mm	inch	%	kg	lbs
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
50	0.23	0.0090	0.278	0.0109	29.94	1.32	2.90
50	0.19	0.0074	0.318	0.0125	39.18	0.90	1.98
50	0.18	0.0070	0.328	0.0129	41.68	0.81	1.78
60	0.19	0.0074	0.233	0.0091	30.38	1.08	2.37
60	0.15	0.0059	0.273	0.0107	41.68	0.67	1.47
60	0.14	0.0055	0.283	0.0111	44.79	0.58	1.27
80	0.12	0.0047	0.197	0.0077	38.69	0.57	1.25
80	0.10	0.0039	0.217	0.0085	46.92	0.40	0.88
100	0.10	0.0039	0.154	0.0060	36.75	0.50	1.10
120	0.08	0.0031	0.131	0.0051	38.69	0.38	0.83
150	0.06	0.0023	0.109	0.0043	41.68	0.27	0.59
180	0.05	0.0019	0.091	0.0035	41.68	0.22	0.48
200	0.05	0.0019	0.077	0.0030	36.75	0.25	0.55
250	0.04	0.0015	0.061	0.0024	36.75	0.20	0.44
300	0.04	0.0015	0.044	0.0017	27.83	0.24	0.52
325	0.035	0.0013	0.043	0.0016	30.48	0.19	0.41
400	0.030	0.0011	0.033	0.0013	27.83	0.18	0.39
500	0.025	0.0009	0.025	0.0010	25.79	0.15	0.33
600	0.018	0.0007	0.024	0.0009	33.03	0.09	0.21
635	0.015	0.0005	0.025	0.0009	39.06	0.07	0.15

Mesh: from 40mesh to 635mesh

Wire diameter: from 0.3mm to 0.015mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

Benefits

Square hole or rectangular hole
High screening precision
Small opening size > 0.025 mm
Flexible, strength, and durability
Good corrosion-resistance
Low hardness and easy to clean

Application

Usage of twilled weave stainless steel wire mesh includes:

In the water, oil & gas industries, for the raw material of filter element.

In the petrochemical & chemical industries, for test sieve and structured packing.
