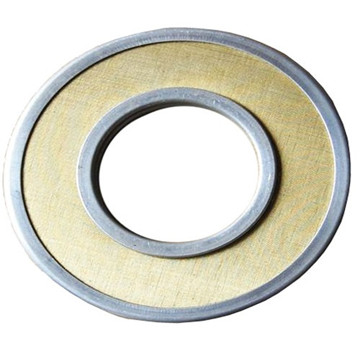

SPL & DPL Brass Mesh Filter Discs is made of 4 layers of brass wire mesh with 1 layer sheet. They are commonly used as double drum filters which composed of multiple filter discs, this type filters are easy to remove solid impurities, and widely used in high viscosity melt filtering device
Materias & Specifications
material：brass
layer：5 layers
Layer arrangement
Layer 1：120mesh
Layer 2：20mesh
Layer 3：0.5mm thick plate
Layer 4：20mesh
Layer 5: 120mesh
Outer diameter：150mm
Inner diameter：64mm
Filter Discs Packing
Filter Discs should be packed firmly and securely. When packing, filter discs are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.
