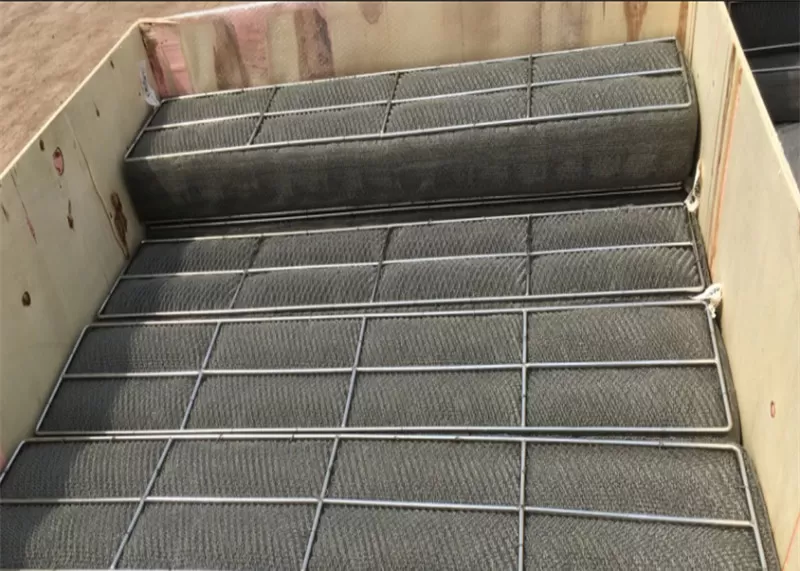

Demister pads are made up knitted gauze pad and support grid of two parts. It is a gas-liquid separator , when the vapor through demister pads it can remove the water mist .The primary function of mist eliminator is to collect water droplets and oil mist from a compressed air system and divert the liquid to an appropriate drain. Mist is formed due to the contact of liquid with gas and separation of diameter greater than 3um ~ 5um droplets .
Materials
Stainless steel: 304, 304L, 316, 316L,
Size
Rectangle shape
- 1400 mm (L) × 400 mm (W) × 150 mm (Thk), weight 30 kg/piece
- 800 mm (L) × 400 mm (W) × 150 mm (Thk), weight 17 kg/piece.
- Demister density: 300 kg/m3.
- Top and bottom grids: SS 316L round bar 6 mm.
Demister Pads Application
Vacuum Tower and Evaporator,Knockout Drums and Separators,Gas Separator Vessels,Distillation Column,Sulfuric acid/oleum,Plasticizer & Sulphonation,Hydrochloric acid &Nitric acid,Ammonium nitrate&Incinerators
